NC straight cutting machine

NC straight cutting machine
NC straight cutting machine

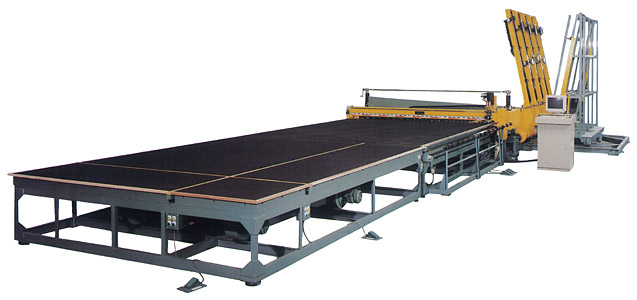

This highly recommended new and powerful NC straight cutting machine boasts the most highly-advanced and high-quality machine in Japan. When connected to one of our fully automatic glass transferring units, we are confident that this machine will achieve excellent productivity and scribing accuracy.
The machine is also easy to operate, as the different cutting patterns and sizes (="Multiple-size cutting"), number of scribing panels, and yield rate will all be displayed on the monitor display after simple recipes are input, allowing the user to adjust the scribing operation as desired with little to no miss operations.

<< Specifications >>
Raw glass sizes 100"x75" 130"x96" 150"x115" 180"x120" 220"x130"
Glass thickness 3mm ~ 15mm (3mm ~ 19mm (Optional))
Scribing accuracy +/-0.2 mm (Cutter-to-line accuracy)
Cutter structure 1-carriage, 2-cutter type, Equipped with automatic oil supplying unit
Glass scribing/processing With built-in automatic calculating computer system
Others Max. 500" (12700mm) long machine can be made by request
* Machine details and specifications may be modified by SHIRAI TECH at any time without prior notice.
